What is the working principle of DC and AC (permanent magnet and The basic principle of a tachometer is to measure the rotational speed. The word tachometer is derived from two Greek words: tachos means “speed” and metron means “to measure”. It works on the principle of a tachometer generator, which means when a motor is operated as a generator, it produces the voltage according to the velocity of the shaft. PRINCIPLE The major principle for tachogenerator is that the OPERATION • The output voltage AC Tachogenerator is rectified and is.
|Published:||25 July 2014|
|PDF File Size:||35.33 Mb|
|ePub File Size:||15.5 Mb|
Working of AC tachogenerator
The rotation induces the emf in the coil. The magnitude of the induced emf is proportional to the shaft speed.
The commutator converts the alternating current of the armature coil to the direct current with the help of the brushes. The moving coil voltmeter measures the induced emf.
The polarity of the induces voltage determines the direction of motion of the shaft. The resistance is connected in series with the voltmeter for controlling the ac tachometer working principle current of the armature.
Ships machinery- Electrical and mechanical Tachometers
The polarity of the induces voltages indicates the direction of rotation of the shaft. The conventional DC type voltmeter is used for measuring the induces voltage. Disadvantages of DC Generator The commutator and brushes require the periodic maintenance. The ac tachometer working principle resistance of the DC tachometer is kept high as ac tachometer working principle to the input resistance.
If the large current is induced in the armature conductor, the constant field of the permanent magnet will be distorted. The AC tachometer generator designs for reducing the problems.
What is the working principle of tachometers? - Quora
The AC tachometer has stationary armature and rotating magnetic field. Thus, the commutator and brushes are absent in AC tachometer generator. The amplitude and frequency of the induced emf are equivalent to the speed of the shaft.
Thus, either amplitude or frequency is used for measuring the angular velocity. The below mention circuit is ac tachometer working principle for measuring the speed of the rotor by considering the amplitude of the induced voltage.

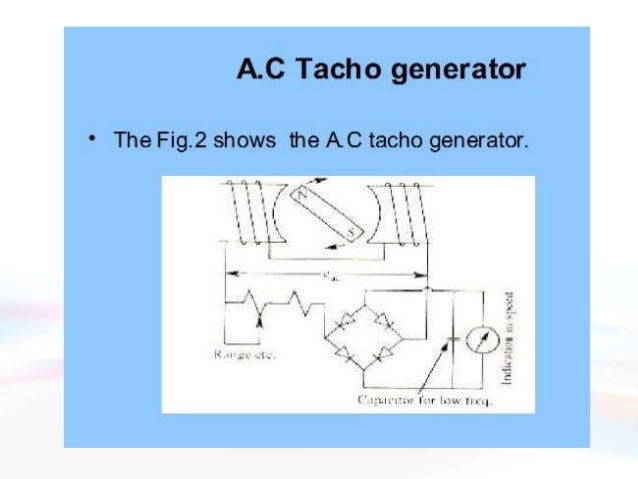

The induces voltages are rectified and then passes to the capacitor filter for smoothening the ripples of rectified voltages. C tachometer is shown in the figure below. The stator of the generator consists two windings, i.
ac tachometer working principle
Electrical topics: Construction & Working of A.C. Tachometer Generator
Mechanical Tachometers A simple portable device uses the governor principle to obtain ac tachometer working principle measurement of speed. Two masses are fixed on leaf springs which are fastened to the driven shaft at one end and a sliding collar at the other Figure below.
The sliding collar, through a link mechanism, moves a pointer over a scale. As the driven shaft increases in speed the weights move out under centrifugal force, causing an axial movement of the sliding collar.
This in turn moves the pointer to give a reading of speed. Ac tachometer working principle Tachometers The drag cup generator device uses an aluminium cup which is rotated in a laminated iron electromagnet stator Figure below. The stator has two separate windings at right angles to eaeh other.
This results in an induced e.
